E-Mobility
Our range of e-mobility switchboards are fully customizable and tailored to your electrical needs with a wide range of aux, power metering, communications, safety and control accessories.
It doesn’t get any smaller! Our electric vehicle model line of switchboards made for electric vehicle charging are the most compact on the market. Ranging in height from 54″ up to 78″, we can customize and enhance any of your project specifications to offer solutions capable of handling your needs.

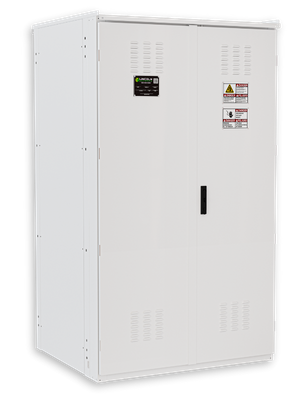

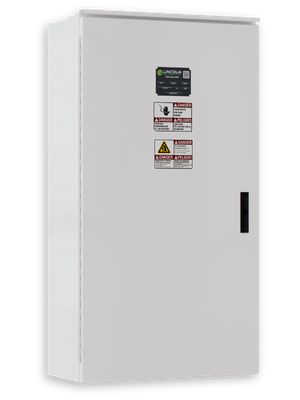

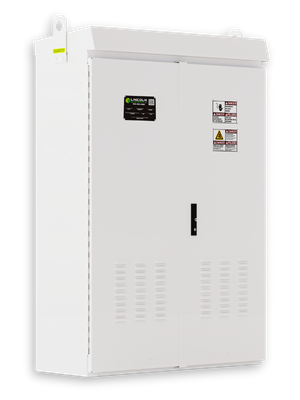

Our switchboards are versatile with multi-breaker and enclosure configurations. Our base model, the EV-lite, can power a single L3 charger up to 400kW and our EV-1 model ranges from 2-6 power cabinets up to 400kW, both with aux power for 277V lighting. The EV-2 models are available with or without utility metering compartments for over 100 utilities in North America.

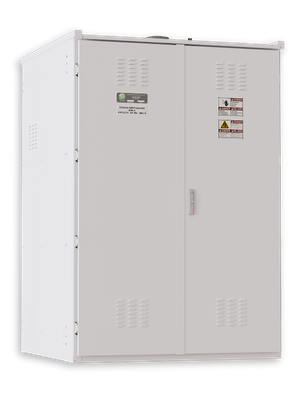

The Beasts Model Line
The Beasts model line is specifically made by Lincoln Electric Products Co. are specifically configured for simplified installation and footprint optimization with reduced lead time.
Equipment Details
Specifications
Spec Sheets

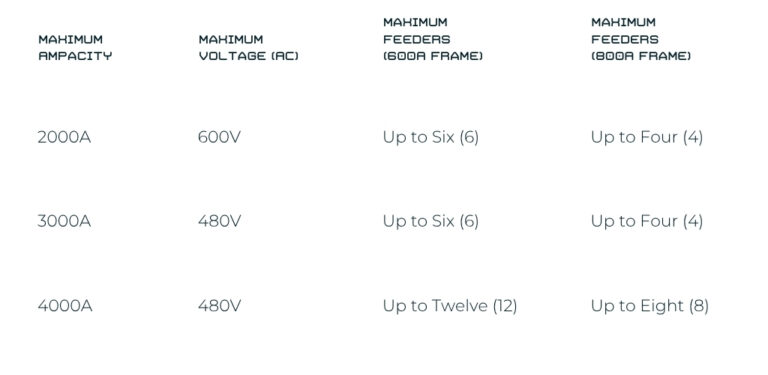

Specifications
FEATURES
- Up to 600V
- Up to 4000A
- Up to 100kAIC
- Main Breaker or Main Lug
- Integrated AUX Power per Customer Specifications
- Integral 15A Duplex GFCI receptacle with USB-A & C ports
- Integrated Work Light
- Tool-less Dead Front Removal
- Enclosure Heater
OPTIONS
- Digital Metering
- Manual or Automatic Transfer Switch
- Cam-Lock Connections
- Cellular and Wi-Fi Communications w/ Antenna
- Current Limiting Fuses to feed chargers w/ low interrupting rating
- Step-up & Step-down transformers up to 1500kVA
Spec Sheets
