- E-MOBILITY
EV-1
Tap Doors To Open & Close
Tap Doors To Open & Close

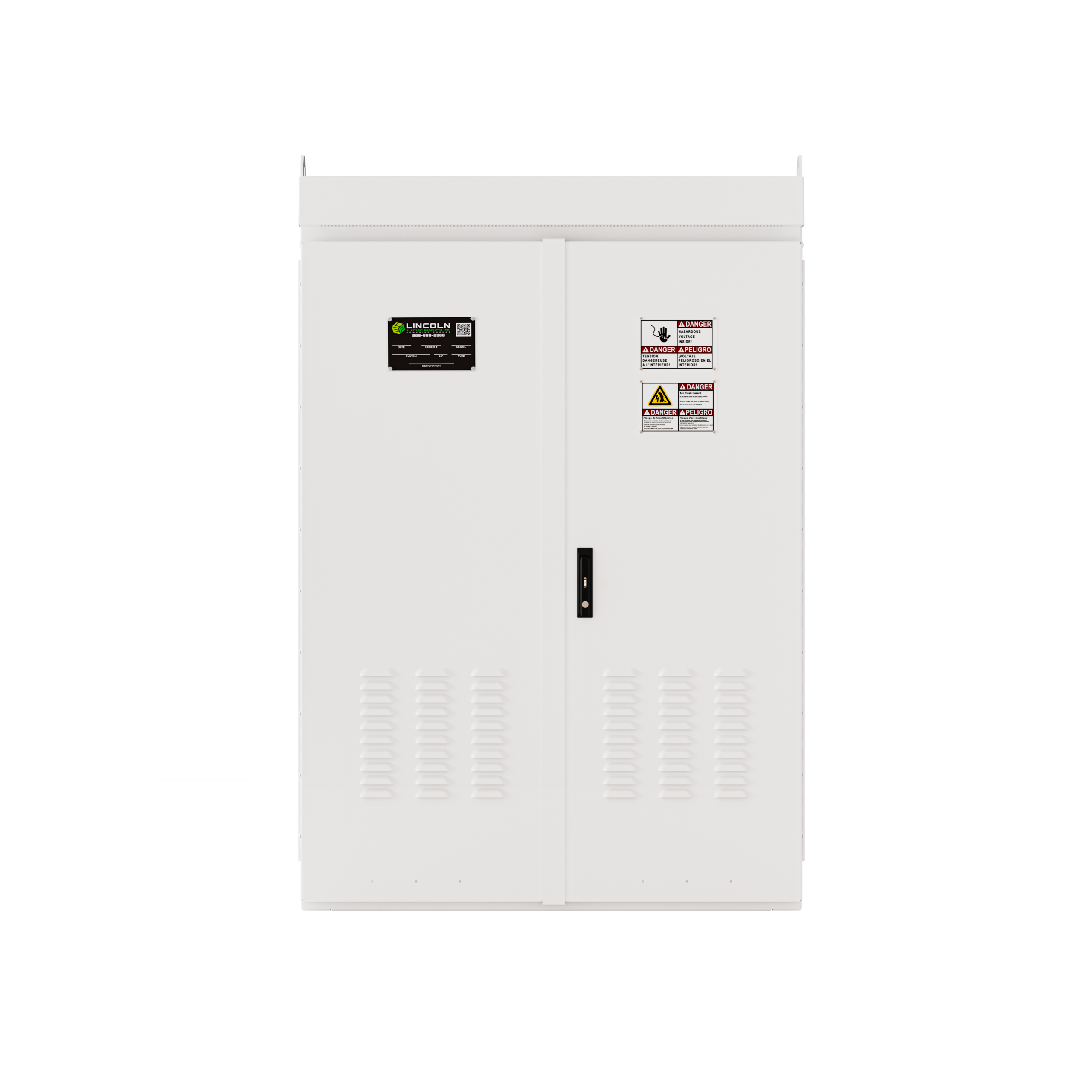

EV-1: Versatile Equipment

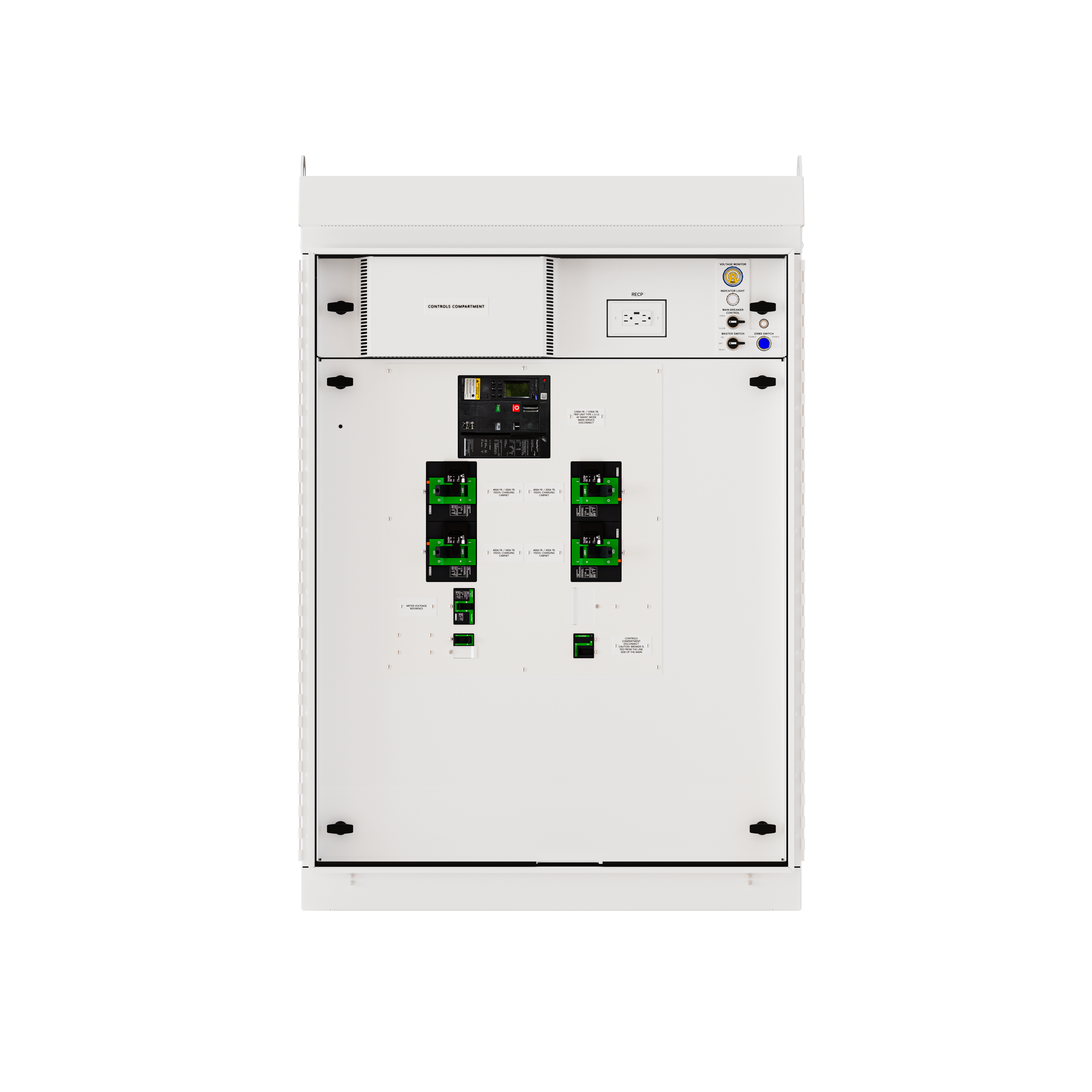

The EV-1 model ranges from 2-6 power cabinets up to 400kW with aux power for 277V lighting. Individually accessible and barriered with a 120V communications & control compartment. Suitable for use as service equipment in North America.
Equipment Details
Specifications
Spec Sheet
Specifications
FEATURES
- Up to 600 VAC
- Up to 1600A Bus Rating (1750A Main Lung Only)
- Up to 65kAIC
- NEMA 3R Enclosure
OPTIONS
- Power Metering
- Branch Circuit Monitoring
- Surge Protective Device
- 5G Wireless Networking & Communications
- Plinth
- Integral Interior Lighting
- PLC enabled Indication/Actuation
- Up to 5kVA Control Power
Spec Sheet
Product gallery
